THREADINGMachines

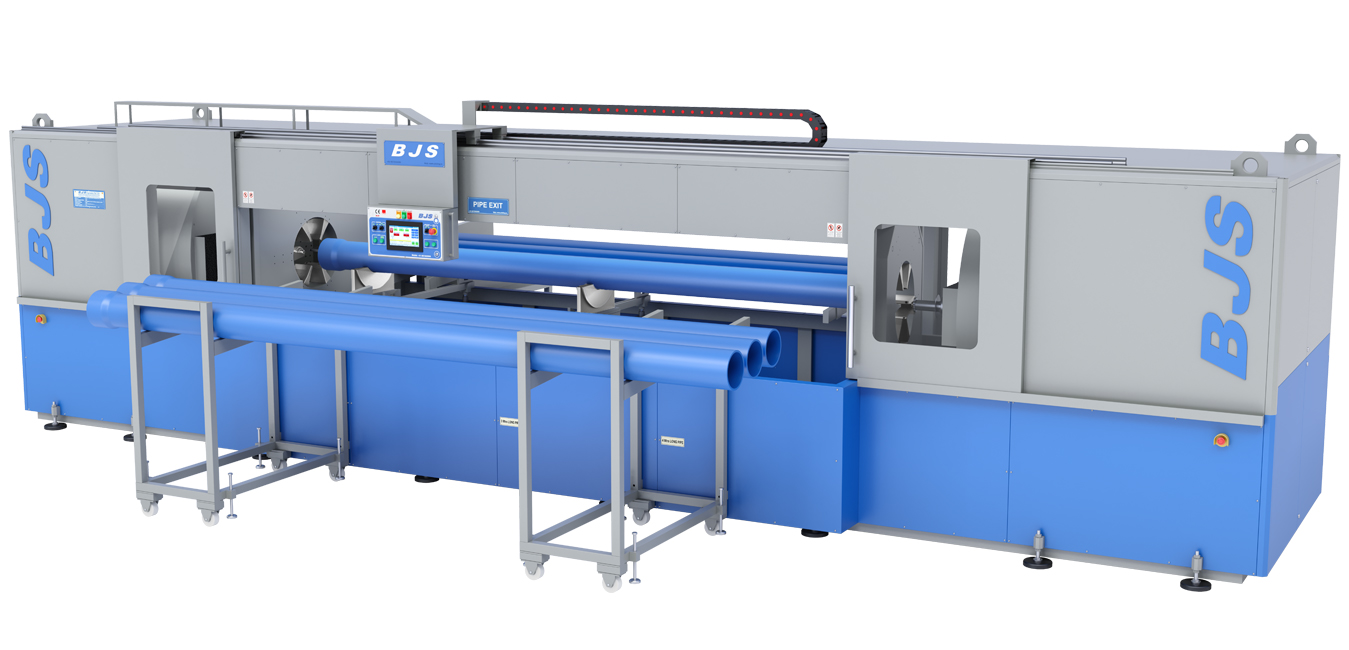

Double Head, Automatic Pipe Threading Machine

Multi Point Tool Machine Optional - Auto Loading Unloading of Pipes

Pipe Threading Machine Manufacturers, Pipe Threading Machine Supplier in India
SPECIFICATIONS MULTI POINT TOOL
Model BJS-CNC-MPTT-250 BJS-CNC-MPTT-315 BJS-CNC-MPTT-400 BJS-CNC-MPTT-500 BJS-CNC-MPTT-630
Pipe Size Range (mm) 100-250 125-315 160-400 200-500 250-630
Servo Motor for Axis (Kw) 13.2 13.2 13.2 13.2 13.2
Main Motor for Cutter (Kw) 5.6 x 2 5.6 x 2 5.6 x 2 5.6 x 2 5.6 x 2
Power Consumption #(Kw Apprx.) 26.0 26.0 26.0 26.0 26.0
Controlled Supply

SOME SALIENT FEATURES

  • Fast & Accurate
  • User Friendly for Ease of Operating as not using G Code, M code only parameter feeding type
  • Using Pneumatic Cylinders for holding the pipe
  • Auto Lubricant for Slide Bearing & Ball Screw Nut
  • Fully Covered from all sided with slide doors and viewing windows
  • Both Sides Threading Together i.e. One side Male & Other Side Female Threading
  • Machine comes in Single Piece no need for heavy foundation / Civil Work
  • Machine can be installed in a day
  • TOTAL 6 Servo Motors & Servo Drives i.e. 3 on Left Side Threading & 3 on Right Side Threading
  • All setting from Touch Screen with fine accuracy
  • SPECIAL : Cutter Depth for Threading or other process by Servo and controllable from Touch Screen

OPTIONAL FEATURES

  • Automatic pipe loading and unloading on working station
  • Feeding or Discharge Tables or Trolleys
  • Air Booster for Pneumatic Line
  • Servo Supply Stabilizers
  • IOT Monitoring System

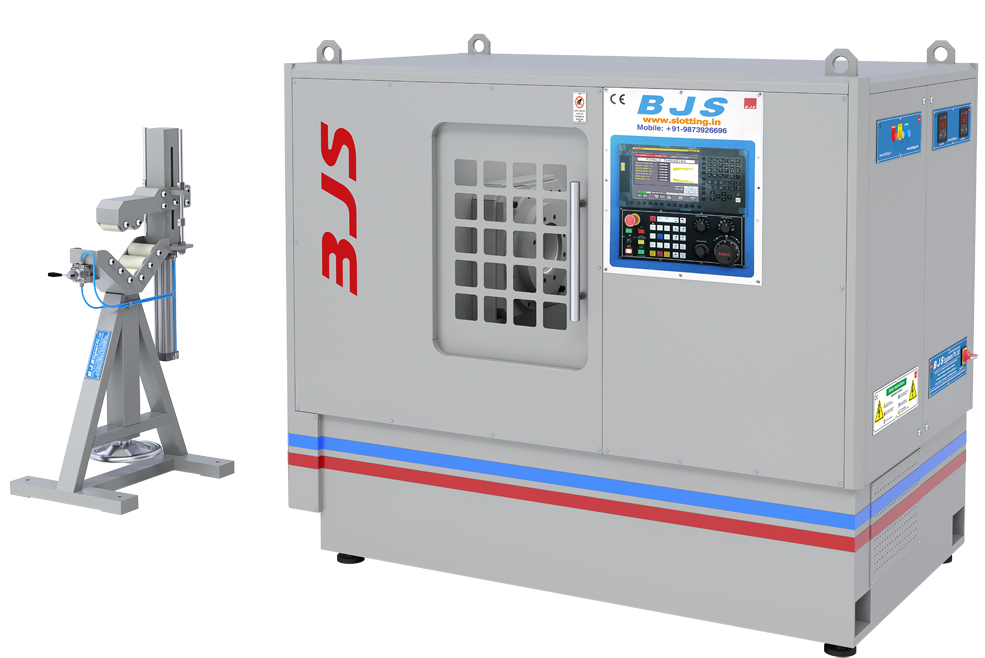

CNC Pipe Threading Machine-Single Point Tool

Pipe Threading Machine Manufacturers, Pipe Threading Machine Supplier in India

SOME SALIENT FEATURES

  • Fast & Accurate
  • CNC Controller FANUC JAPAN Make
  • 4 Station Turret PRAGATI Make
  • User Friendly for Ease of Operating as not using G Code, M code only parameter feeding type
  • Using Hydraulic Cylinders for holding the pipe
  • Auto Lubricant for Slide Bearing & Ball Screw Nut
  • Fully Covered from all sided with slide doors and viewing windows
  • Special designed, pneumatic stand for idle side of machine.
Pipe Threading Machine Manufacturers, Pipe Threading Machine Supplier in India

SPECIFICATIONS MULTI POINT TOOL
Model BJS-CNC-SPT-050 BJS-CNC-SPT-100 BJS-CNC-SPT-160 BJS-CNC-SPT-200
Pipe Size Range 12.7-50 mm 40-100 mm 80-160 mm 100-200 mm
Main Spindle Motor 3.7 Kw 5.5 Kw 5.5 Kw 5.5 Kw
Power Consumption 9.2 Kw 11.0 Kw 11.0 Kw 11.0 Kw
Controlled Supply
Pipe Threading Machine Manufacturers, Pipe Threading Machine Supplier in India

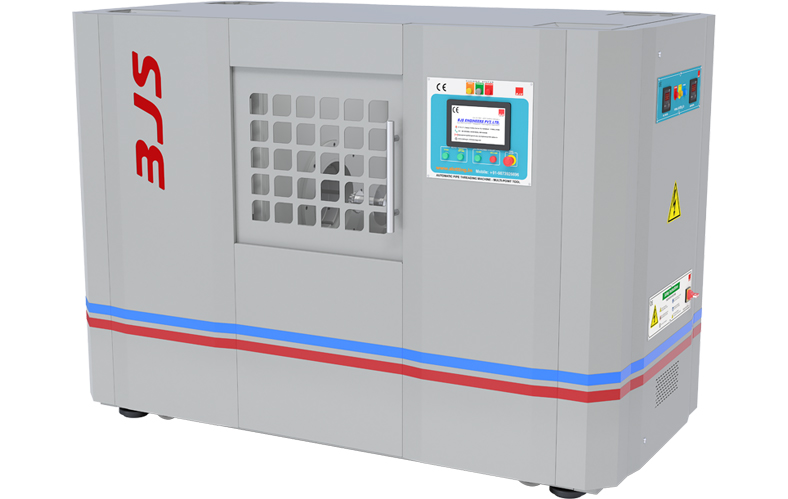

Automatic Pipe Threading Machine- Multi Point Tool

Pipe Threading Machine Manufacturers, Pipe Threading Machine Supplier in India

SOME SALIENT FEATURES

  • Fast & Accurate
  • User friendly for Ease of Operation as not using G Code, M Code only parameter feeding type
  • Using Hydraulic Cylinders for holding the pipe
  • Auto Lubricant for Slide Bearing & Ball Screw Nut
  • Fully Covered from all sided with slide doors and viewing windows
  • All settings from Touch Screen with fine Accuracy
  • SPECIAL : Cutter Depth for Threading or other process by Servo and controllable from Touch Screen
  • Stand is also provided for idle side of Pipe

OPTIONAL FEATURES

  • Automatic Pipe Loading and Unloading at Stations
  • Feeding or Discharge Tables or Trolleys.
  • IOT Monitoring System
SPECIFICATIONS MULTI POINT TOOL
Model BJS-CNC-MPT-250 BJS-CNC-MPT-315 BJS-CNC-MPT-400 BJS-CNC-MPT-500 BJS-CNC-MPT-630
Pipe Size Range (mm) 100-250 125-315 160-400 200-500 250-630
Servo Motor for Axis (Kw) 6.6 6.6 6.6 6.6 6.6
Main Motor for Cutter (Kw) 5.6 5.6 5.6 5.6 5.6
Power Consumption (Kw Approx.) 13.0 13.0 13.0 13.0 13.0
Controlled Supply
