SLOTTINGMachines

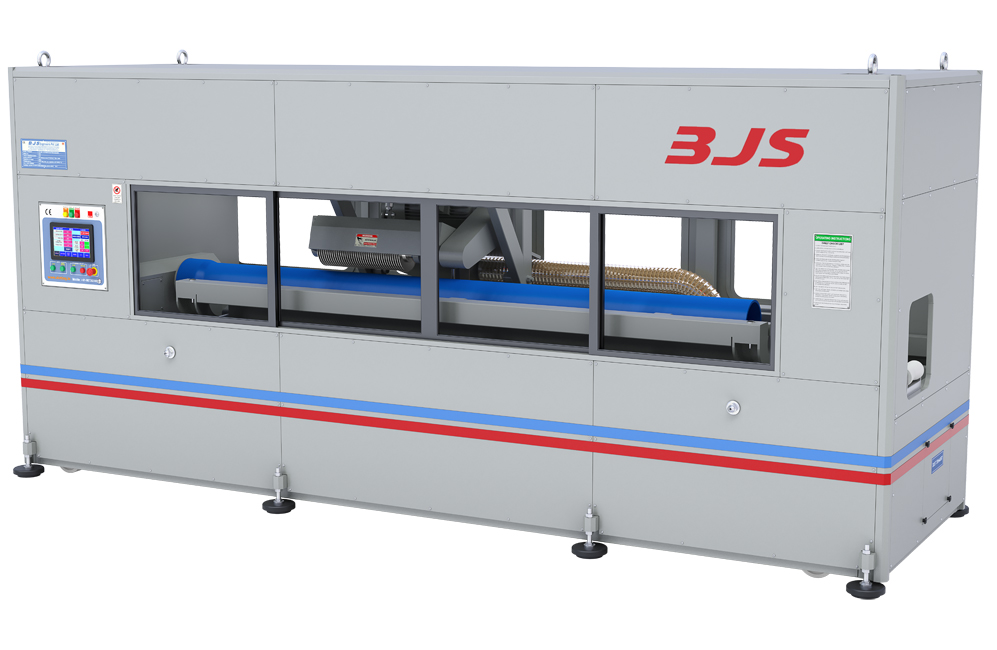

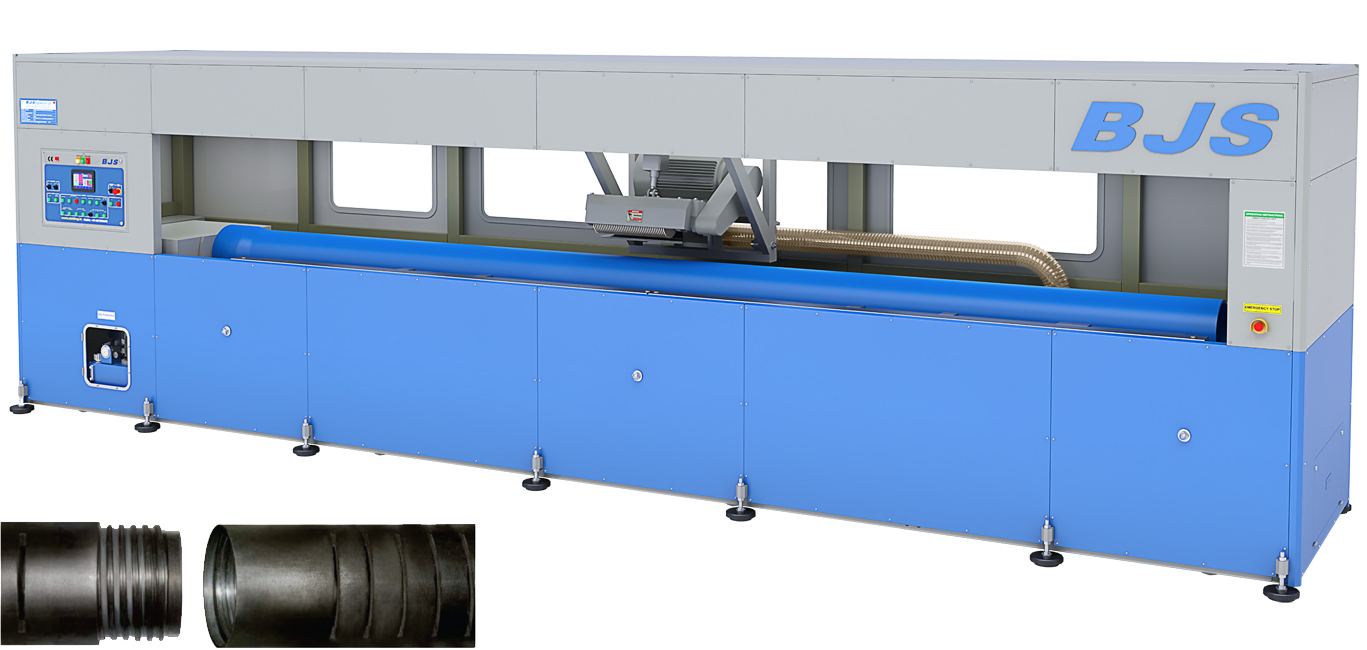

Special Servo, Automatic Slotting Machine

Optional- Floating Indexing & Pipe Jacking for Pipe Removal by Forklift Etc.

Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SOME SALIENT FEATURES

  • Fast & Accurate
  • Powered pipe holder with collets for pipe indexing
  • Trolley Traverse by Servo Motor & Servo Drive
  • Aluminum Slide Doors with Viewable Polycarbonate Sheets
  • Cutter Up/Down by Servo Electric Cylinder
  • Separate Dust Collecting System

OPTIONAL FEATURES

  • Open top model for heavy & big pipes
  • Pipe Indexing Floating System
  • Pipe Jacking for Pipe Lifting.
  • Pipe Indexing by Servo Motor & Servo Drive
  • Automatic Pipe Loading / Unloading
  • Closed Circuit Chilled Air Arrangement for Slotting HDPE Pipes
  • Pipe Removal by Forklift
  • Any other Special or Combination of Features
  • IOT Monitoring System



Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SPECIFICATIONS

Model BJS-SSM-250 BJS-SSM-315 BJS-SSM-400 BJS-SSM-500 BJS-SSM-630
Pipe Size Range (mm) 80-250 100-315 160-400 200-500 250-630
Pipe Length (Mtrs.) 3.0-6.0 3.0-6.0 3.0-6.0 3.0-6.0 3.0-6.0
Main Motor For Cutter (Kw) 15.0 15.0 15.0 15.0-18.75 15.0-22.5
Power Consumption (Kw. Approx) # 21.0 21.0 21.0 21.0 -25.0 21.0-29.0
Controlled Supply

# Plus for Optional Features

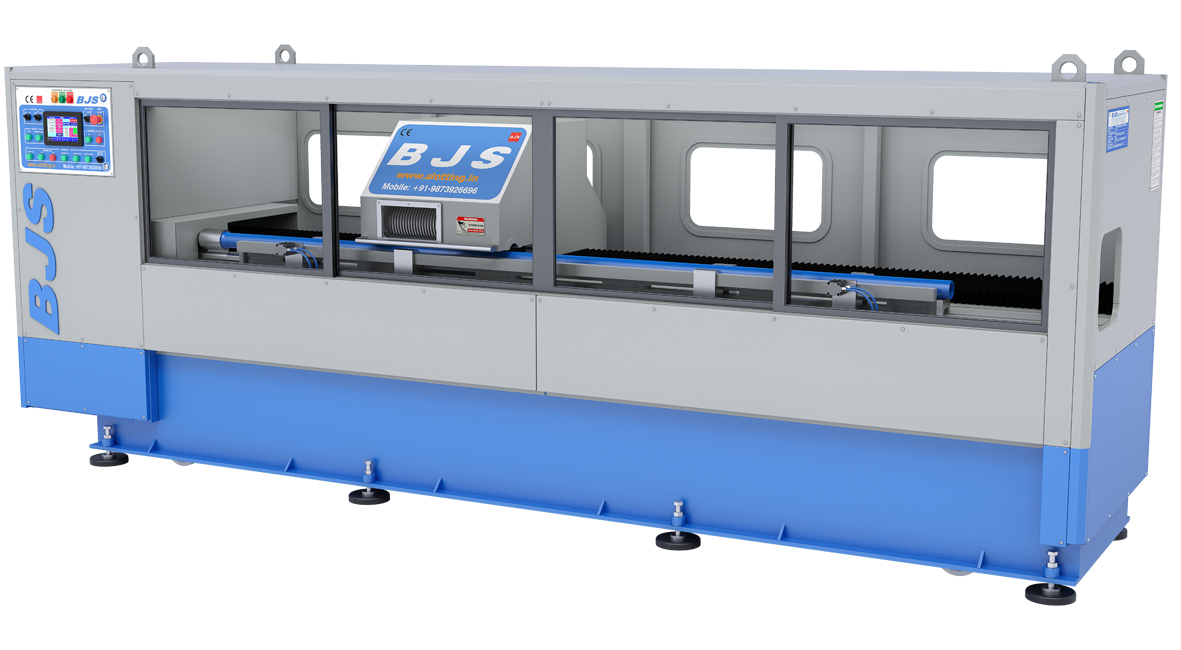

Twin Pipe, 5th Gen. Automatic Slotting Machine

Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SOME SALIENT FEATURES

  • Slotting 2 Pipes at a Time
  • Fast & Accurate
  • Powered pipe holder with collets for pipe indexing
  • Trolley Traverse by Servo Motor & Servo Drive
  • Aluminum Slide Doors with Viewable Polycarbonate Sheets
  • Cutter Up/Down by Servo Electric Cylinder
  • Dust Collecting System

OPTIONAL FEATURES

  • Separate Dust Collecting System
  • IOT Monitoring System
Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SPECIFICATIONS

Model BJS-SM-TP-160 BJS-SM-TP-250 BJS-SM-TP-315 BJS-SM-TP-400
Pipe Size Range (mm) 40-160 80-250 100-315 160-400
Pipe Length (Mtr.) 3.0 3.0 3.0 3.0
Slotting Time/ Line in Min.# 1.0 1.0 1.0 1.0
Main Motor for Cutter (Kw) 15.0 15.0 15.0 15.0
Power Consumption (Kw. Approx) 38.0 38.0 38.0 38.0

# Depending upon pipe dia, pipe thickness, cutter’s thickness, cutter’s sharpness, pipe’s compounding, Slot Length, Cutter’s Penetration Speed etc.

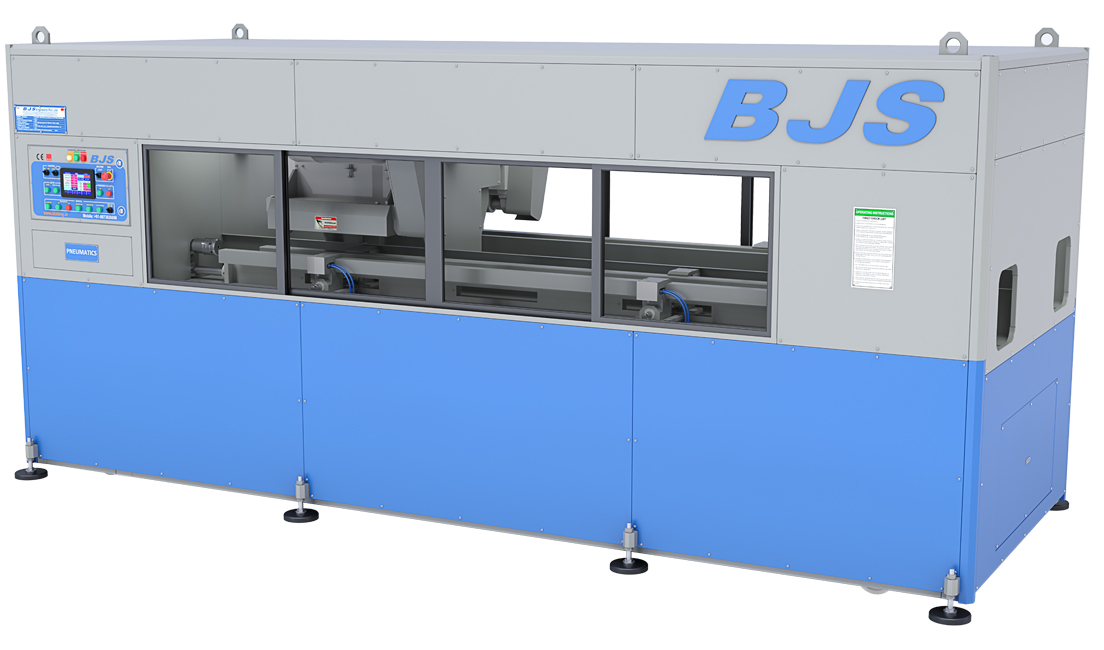

6th Gen. Automatic Pipe Slotting Machine

Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SOME SALIENT FEATURES

  • Fast & Accurate
  • Servo Motors & Servo Drives – 3 Nos, i.e., for Trolley Traverse, Pipe Indexing & Cutter Up/Down
  • Aluminum Slide Doors with Viewable Polycarbonate Sheets

OPTIONAL FEATURES

  • Male Side Thin Pipe O.D. Turning
  • Servo Supply Stabilizer
  • IOT Monitoring System
Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SPECIFICATIONS

Model BJS-SM-CNC-40 BJS-SM-CNC-50 BJS-SM-CNC-100
Pipe Size Range (mm) 40 40 & 50 40, 50, 80 & 100
Pipe Length (Mtrs.) 3 3 3
Main Motor For Cutter (Kw) 5.5 5.5 5.5
Slotting Time/Cycle (Min.) 2-2.5 2-2.5 2-2.5
Power Consumption (Kw apprx.) 12.0 12.0 12.0

# Depending upon pipe dia, pipe thickness, cutter’s thickness, cutter’s sharpness, pipe’s compounding, slot length, cutter’s penetration speed etc.



5th & 3rd Gen. Automatic Pipe Slotting Machine

Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SOME SALIENT FEATURES

  • Fast & Accurate
  • Powered pipe holder with collets for pipe indexing
  • Trolley Traverse by Servo Motor & Servo Drive - 5th Gen.
  • Cutter Up / Down Stroke by Servo Cylinder
  • Aluminum Slide Doors with Viewable Polycarbonate Sheets
  • Dust Collecting System

OPTIONAL FEATURES

  • Separate Dust Collecting System
  • Closed Circuit Chilled Air Arrangement for Slotting HDPE Pipes
  • IOT Monitoring System
Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Bhiwadi

SPECIFICATIONS

Model BJS-SM-5G/3G-160 BJS-SM-5G/3G-250 BJS-SM-5G/3G-315 BJS-SM-5G/3G-400
Pipe Size Range (mm) 40-160 80-250 100-315 160-400
Pipe Length (mtr.) 3.0-6.0 3.0-6.0 3.0-6.0 3.0-6.0
Slotting Time/ Line in Min.# 1.0 / 1.0-2.0 1.0 / 1.0-2.0 1.0 / 1.0-2.0 1.0 / 1.0-2.0
Main Motor for Cutter ( Kw) 15 15 15 15
Power Consumption (Kw) 20.50 /18.75 20.50 /18.75 20.50 /18.75 20.50 /18.75

# Depending upon pipe dia, pipe thickness, cutter’s thickness, cutter’s sharpness, pipe’s compounding, Slot Length, Cutter’s Penetration Speed etc.



SPECIALISATION

Can Design, Configure and Supply any type of Special Machine in line of our manufacturing, meeting customer's specific requirment. Special Slotting Machines for PVC/PE/STEEL Pipe having features like slotting 2/3 or 1/2 Circumference, Slotting Zig-Zag Pattern, Longitudinal Slotting, Long Machines with 2,3 or 4 Slotting Heads, Full orPartially Servo based, Perforation for Corrugated Pipes, Pipe dia uptill1200mm, 3M, 4M, 6M or 12Mtrs long or any other feature required.

Pipe Slotting Machine Manufacturers, Pipe Slotting Machine Supplier in Faridabad



NOTES

# Depending upon pipe dia, pipe thickness, cutter's thickness, cutter's sharpness, pipe's compounding, Slot Length, Cutter's Penetration Speed etc.

* However, Design & All Data carefully Computed, which may change at any time in interest of constant improvement
